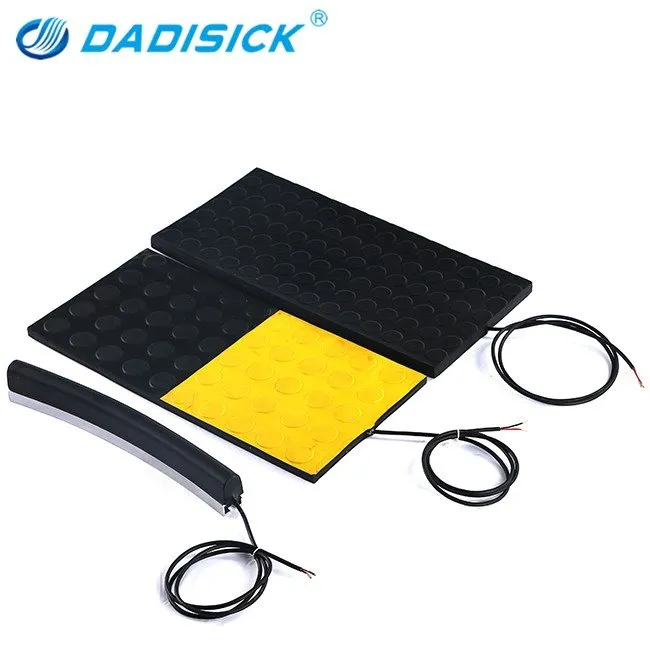

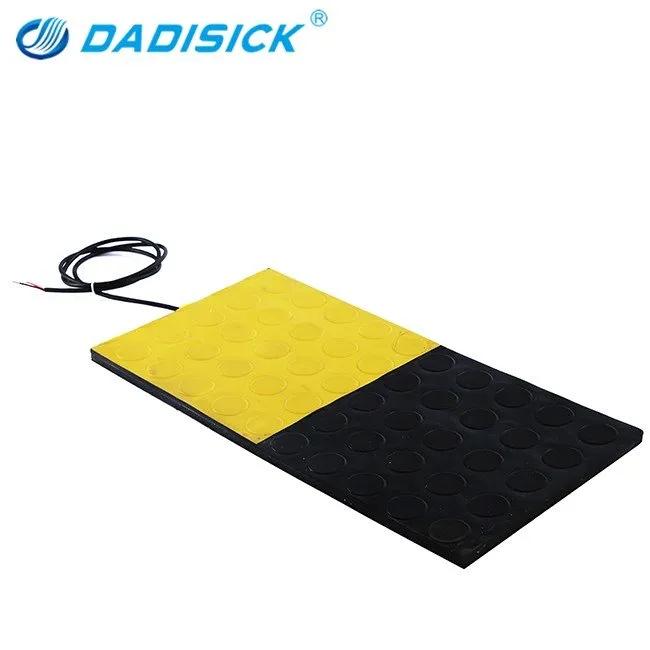

This rubber safety mat signal switch is constructed using PVC scrap rubber, featuring four pressing edges and corner signal lines. The switch itself is comprised of four separate parts, designed for simple and straightforward installation. With its high similarity to the original text, this product guarantees a secure and reliable safety solution for any environment.
DETAILS
Specification | |||||
Model | Length | Width | Output | Outgoing way | Oil-proof |
PM3-500*500mm | 500 | 500 | NO | Four core | YES |
PM3-750*750mm | 750 | 750 | NO | Four core | YES |
PM3-1000*500mm | 1000 | 500 | NO | Four core | YES |
PM3-1000*1000mm | 1000 | 1000 | NO | Four core | YES |
PM3-1500*500mm | 1500 | 500 | NO | Four core | YES |
PM3-500*500mm | 500 | 500 | NO | Four core | NO |
PM3-750*750mm | 750 | 750 | NO | Four core | NO |
PM3-1000*500mm | 1000 | 500 | NO | Four core | NO |
PM3-1000*1000mm | 1000 | 1000 | NO | Four core | NO |
PM3-1500*500mm | 1500 | 500 | NO | Four core | NO |
11mm thick, PVC, non-standard customization, please contact customer service for consultation.
FAQ
1. Can the safety carpet be cut?
No, do not drill or cut the safety carpet.
2. How much is the maximum bearing capacity?
The maximum bearing capacity is 80kg / cm ²（ 8 hours).
3. What should be paid attention to when using?
The safety carpet shall not curl during use, installation and treatment.
Do not drill or cut the safety carpet, and do not drive the screws on the safety carpet.
4. Can multiple safety carpets be connected in series into a control area?
tolerable.
5. How many meters is the cable?
The standard outgoing line is 3M.
