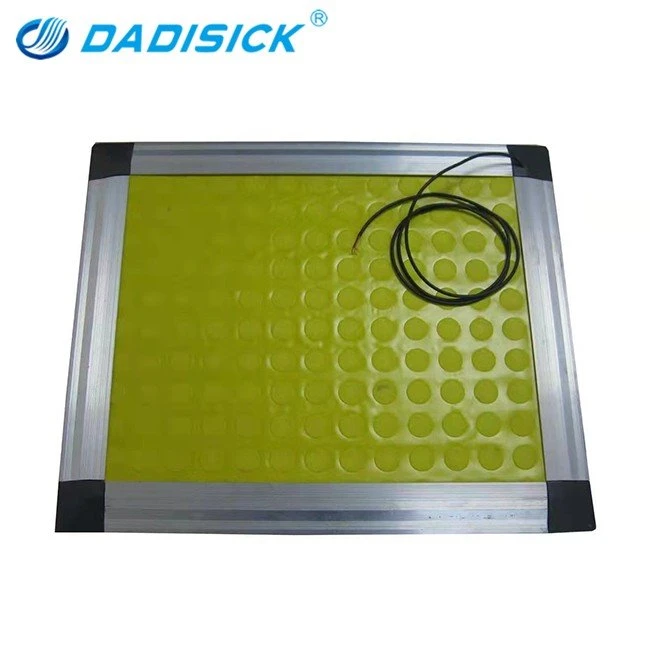

A dedicated induction safety mat is an essential component of a comprehensive safety system that is compliant with safety level 3 requirements as outlined by the EN1760-1 and EN95-4 standards. When used in conjunction with a dedicated controller, this mat is capable of providing reliable and effective safety measures to keep workers protected from hazardous machinery and equipment. With the CE mark as proof of its compliance, you can trust this safety mat to deliver reliable protection in a variety of industrial settings.
DETAILS
Specification | |||||
Model | Length | Width | Output | Outgoing way | Oil-proof |
PM3-500*500mm | 500 | 500 | NO | Four core | YES |
PM3-750*750mm | 750 | 750 | NO | Four core | YES |
PM3-1000*500mm | 1000 | 500 | NO | Four core | YES |
PM3-1000*1000mm | 1000 | 1000 | NO | Four core | YES |
PM3-1500*500mm | 1500 | 500 | NO | Four core | YES |
PM3-500*500mm | 500 | 500 | NO | Four core | NO |
PM3-750*750mm | 750 | 750 | NO | Four core | NO |
PM3-1000*500mm | 1000 | 500 | NO | Four core | NO |
PM3-1000*1000mm | 1000 | 1000 | NO | Four core | NO |
PM3-1500*500mm | 1500 | 500 | NO | Four core | NO |
11mm thick, PVC, non-standard customization, please contact customer service for consultation.
FAQ
1.What is the voltage tolerance?
+10%/-20%
2.. What is the relay safety output?
3NO+1NC
3. Can the safety carpet be cut?
No, do not drill or cut the safety carpet.
4. How much is the maximum bearing capacity?
The maximum bearing capacity is 80kg / cm ²（ 8 hours).
5.. What should be paid attention to when using?
